Description

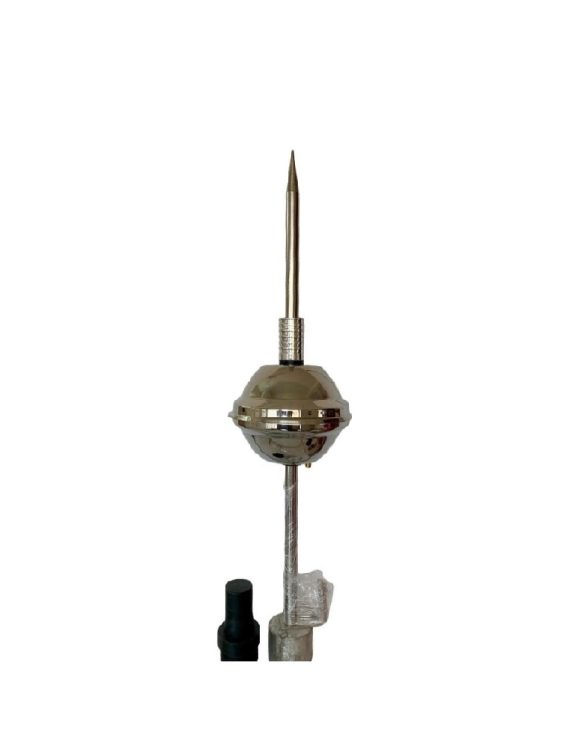

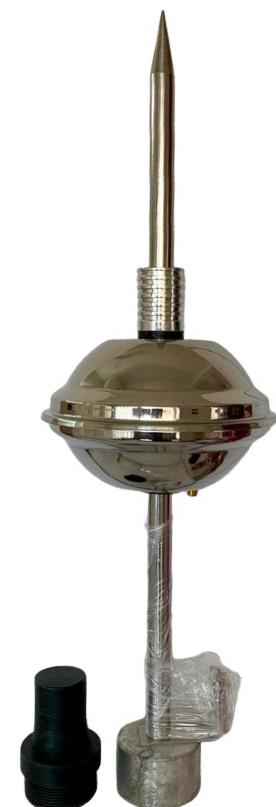

Supply ,design and testing of BOLTRIX EARLY Steamer Emission (ESE) Lightning conductor, Equipped with Stainless central pick up rod. Full electrical continuity between the tip and the earth point. Fully autonomous (no battery, no external power supply required) Collect energy through streamer emission controlled with detects the lightning and trigger a steamer (3.5KV and 20A).Manufactured as per NFC Requirements Rating for which tested 5+ve and 5-ve lightning impulse current (8/20ms)of 200KA temperature in degree Celsius 25 degree, atmosphere Pressure in mm of hg680, relative humidity rh%77. Radius 107mtr at LEVEL-4.
